Remote Particle counters

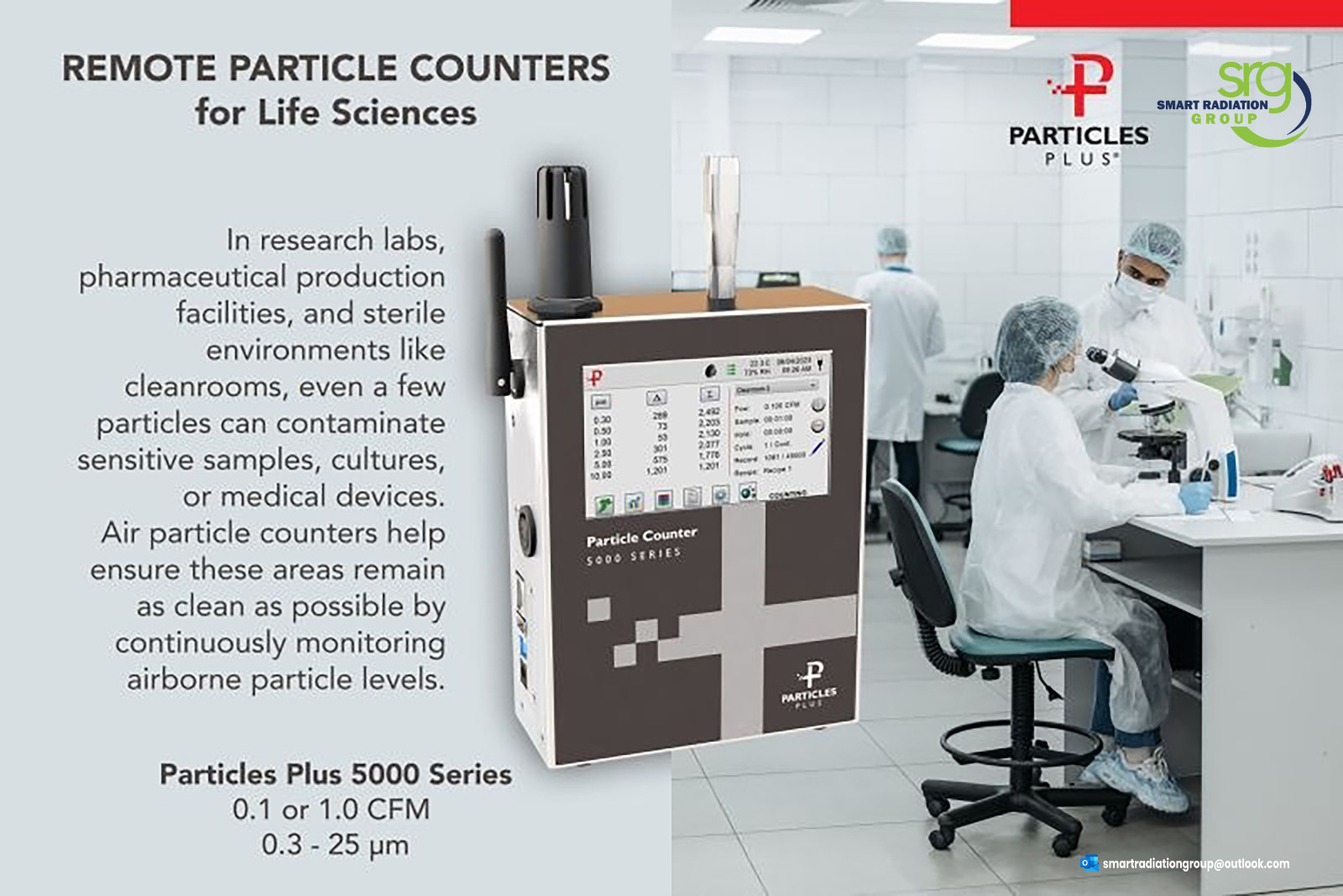

5301 and 5501 Remote Airborne Particle Counters
0.1CFM (2.83 LPM)
The Particles Plus® 5301 and 5501 Remote Particle Counters measure 0.3 or 0.5 to 25.0 μm and are the most feature advanced remote particle counters available.
Integration is easy into a building automation and cleanroom management system via Ethernet, or (optional) Wireless 802.11 b/g, RS485 or RS232. Integrated web server displays instrument screen through any browser.
The 5301 and 5501 remote particle counters display and report 6 user-selectable particle size channels, as well as (optional) temperature and humidity, flow and sensor status, date of last calibration, serial number, laser on-time, and date of manufacture for easy maintenance and warranty management. Storing up to 45,000 time-stamped particle count and environmental data records provides data redundancy on every instrument. Particles Plus® counters can be monitored remotely via web browser, or controlled and monitored using IMS Software.
All Particles Plus® counters meet ISO 21501-4 and JIS B9921. The 5301 and 5501 ensure compliance with an on-board pulse height analyzer.
Features and Benefits
• 5301: Measures 0.3 μm to 25 μm
• 5501: Measures 0.5 μm to 25 μm
• 0.1 CFM (2.83 LPM) flow rate
• Long life laser diode technology
• Measures up to 6 channels of simultaneous data
• Approximates mas concentration in μg/m3 with density/refractive index corections
• Large easy-to-use icon driven colour touch screen display
• (Optional) Temperature and relative humidity probe
• Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
• Annotation function alows user to save 32 character notations to a sample record
• Easy configuration and transferable from instrument to instrument
• Connect using Ethernet, USB or (optional) Wireles 802.11b/g, RS485 or RS232
• Static or dynamic IP address (DHCP)
• Remote diagnostics allows for remote service investigation through the internet
• Versatile mounting options
• Internal audible alarm
• User-selectable channel sizes
• Complies with ISO 21501-4 and JIS B9921 standards
• Easy to clean and wipe down with minimal particle traps
• Seamless integration into a facitilty monitoring system
• Light weight stainles steel enclosure
• 2 year limited warranty. Extended warranties available.
• Industry’s highest concentration of 15,000,000 particles/ft3 @ 10% coincidence loss
• Ideal for use in research, industrial health and safety, indoor air quality, and cleanroom applications
• The most comprehensive internal self-diagnostics of any remote particle counter
• Remote diagnostics allow for remote service investigation through the Internet
• Supports MODBUS TCP, RTU and ASCII communication over Ethernet, or (optional) RS-485/RS-232
• Internet of Things (loT) communication allows for network or cloud-based data options
